标配蓝牙功能

远程配置、控制和维护

提高工作安全性

实时润滑器功能和反馈

高压能力优势，例如应用于重力拉紧装置或需要较长远程润滑脂管线的地方

在寒冷地区和较高温度下普遍使用

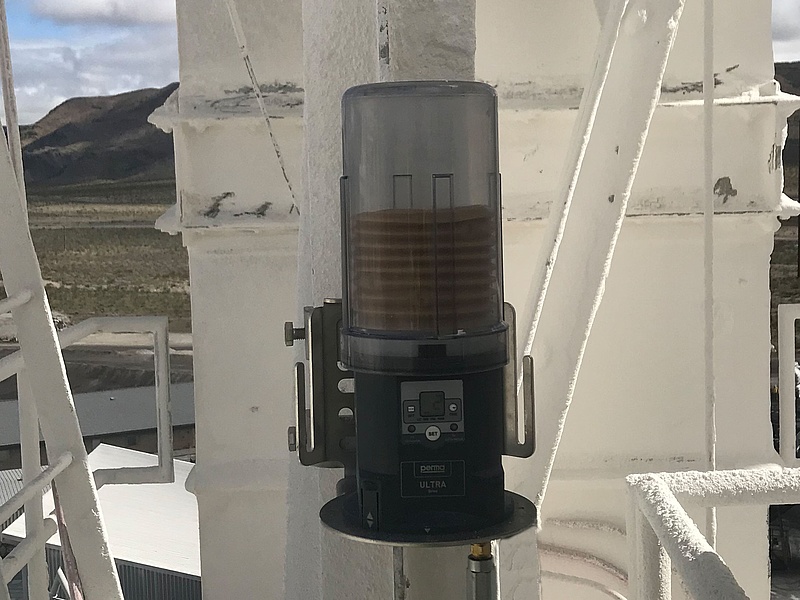

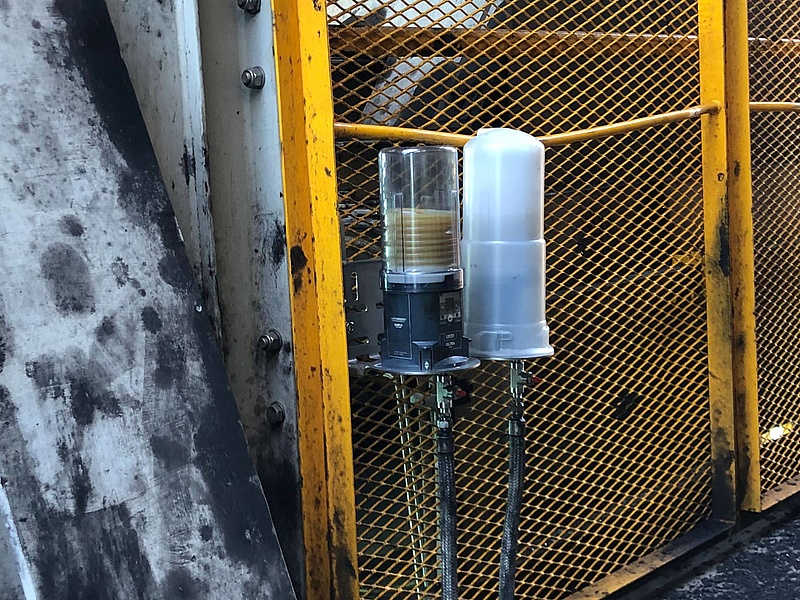

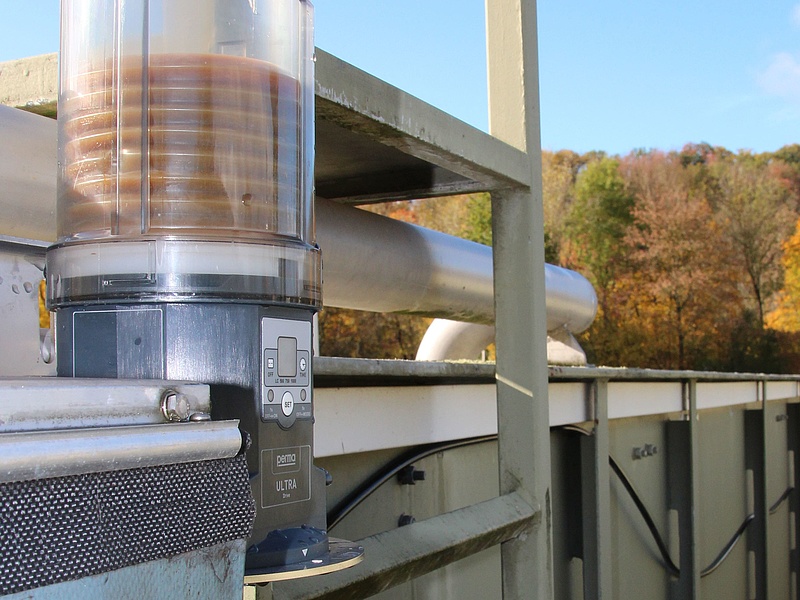

广泛的远程安装选项，通过将系统安装在安全且易于访问的位置来提高工作场所的安全性

简单的单键操作

根据要求精确设置，防止润滑不足和过度润滑

各种分配率选项 - 延长维护间隔

装配件组套——ULTRA标准载荷单点65mm梁夹无管

(商品号：116335)

1 x Mounting bracket ULTRA

2 x Beam clamp 65 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安装配件组套——ULTRA标准载荷单点网挂无管

(商品号：116336)

1 x Mounting bracket ULTRA

2 x Cage hanger arm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安装配件组套——ULTRA重载单点65mm梁夹无管

(商品号：116337)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

2 x Beam clamp 65 mm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安装配件组套——ULTRA重载单点网挂无管

(商品号：116338)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

2 x Cage hanger arm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安装配件组套——ULTRA标准载荷单点65mm梁夹含5米软管

(商品号：116339)

1 x Mounting bracket ULTRA

2 x Beam clamp 65 mm

5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安装配件组套——ULTRA标准载荷单点网挂含5米软管

(商品号：116340)

1 x Mounting bracket ULTRA

2 x Cage hanger arm

5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安装配件组套——ULTRA重载单点65mm含5米软管

(商品号：116341)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm

2 x Beam clamp 65 mm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

装配件组套——ULTRA重载单点网挂5米软管

(商品号：116342)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

5 m Extreme Heavy Duty hose up to +100 °C oØ 11.8 mm x iØ 6.4 mm

2 x Cage hanger arm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose oØ 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male
